Hub Wi-Fi setup — captive portal

Welcome

For installers and first-time setup. Follow the four steps below on a phone or laptop — no app, no cable, no sign-in required. Firmware O2 or later shows this HUB’s Wi-Fi MAC on the first setup screen so you can give it to IT before joining a locked network. If the site blocks captive portals, do not open the HUB: enable USBLAN=1 with the Filter Programmer on USB-C (9600 8N1), then plug USB-C into a USB-host serial-to-LAN adaptor that supplies 5 V. No GPIO or enclosure change. This page works without signing in — bookmark it for the site visit.

Connect your AIRlert Gateway HUB to Wi-Fi

Use the hub’s on-board captive portal — no app or cable, just a phone or laptop. Follow the four steps below.

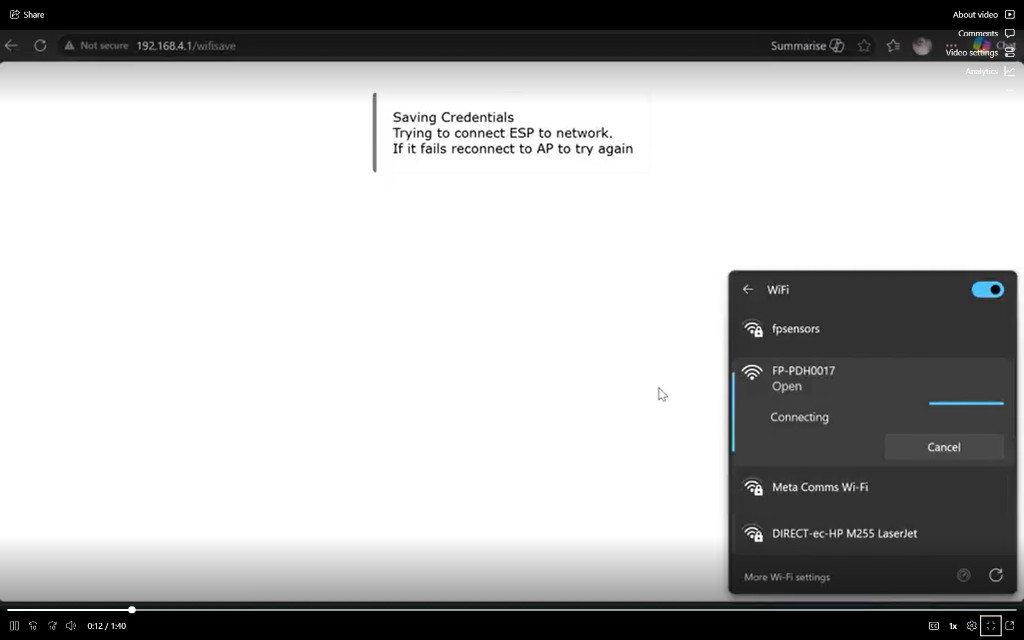

1. Join the FP-PDH… Wi-Fi

Power the AIRlert Gateway HUB. From your phone or laptop, open Wi-Fi settings and join the open network FP-PDH… (e.g. FP-PDH0017).

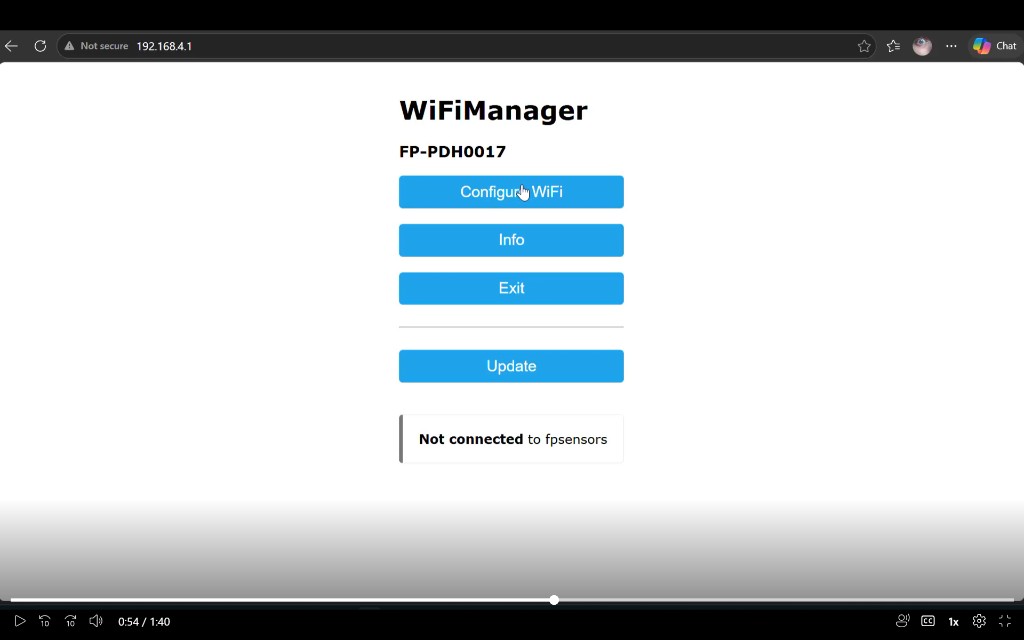

2. Open the captive portal

A captive page should open automatically. If not, browse to http://192.168.??.?? (the exact address is on the hub label / boot screen — the first two octets are always 192.168). On firmware O2 or later the first screen shows this HUB’s Wi-Fi MAC — write that down for IT before joining a locked network. Then tap Configure WiFi.

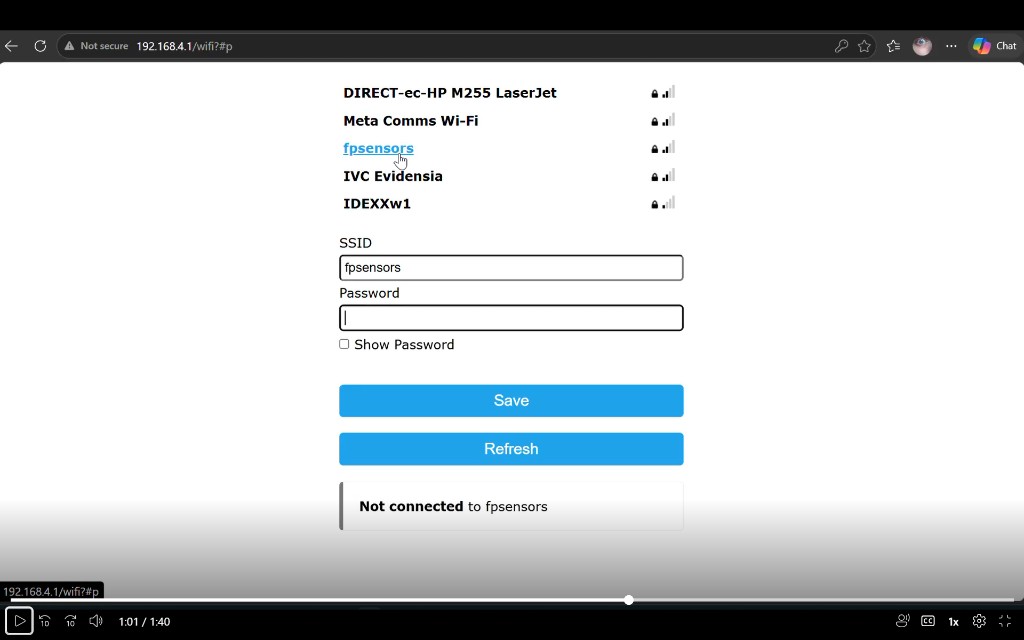

3. Pick your router, enter the password

Choose your site Wi-Fi (or type the SSID), enter the password, then tap Save. Tap Refresh first if your network is missing from the list.

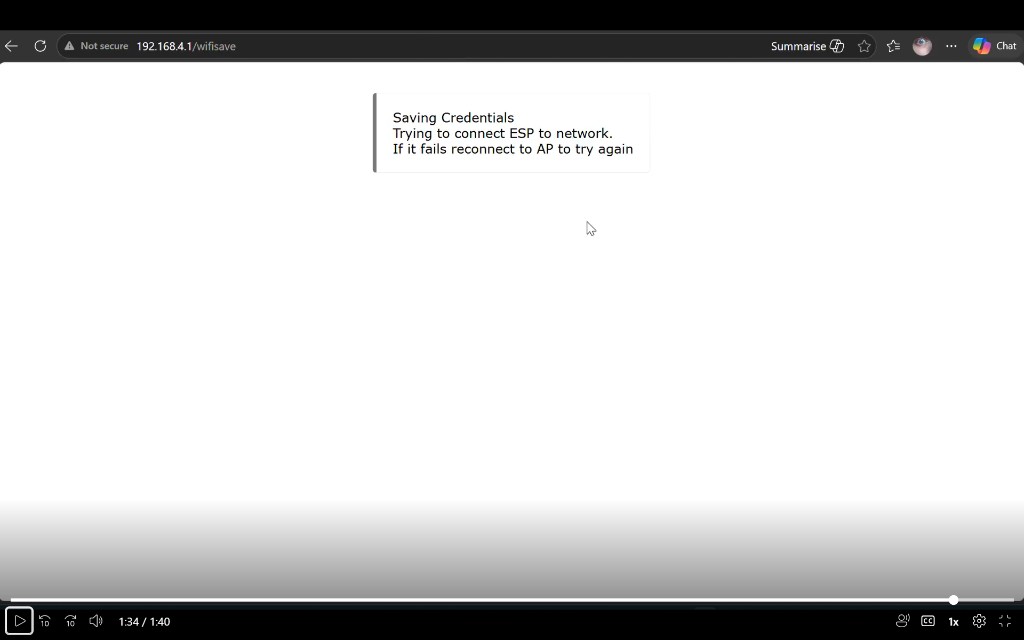

4. Saving Credentials

Wait ~30 s while the hub joins your Wi-Fi. The FP-PDH… AP disappears once it succeeds. If it fails, power-cycle and try again.

Tips: 2.4 GHz SSIDs only; passwords are case-sensitive. Firmware O2+ shows the HUB Wi-Fi MAC on the first screen — copy that for IT, not the phone’s FP-PDH… BSSID. If the captive page does not open automatically, browse to http://192.168.??.?? (see step 2 above for the exact address). If a connection attempt fails, power-cycle the hub and the FP-PDH… network will return so you can try again.

Open API and smart home integration

Partner developers can view how AIRlert sends selected HUB messages to a receiving HTTPS endpoint.

Open API partner guide Download guide OpenAPI JSON Smart home / VHUB guide

Once the hub is online, finish provisioning in the or open the LIVE BOARD manual for day-to-day usage. Guests get a small sign-in window, then go straight to the LIVE BOARD.
